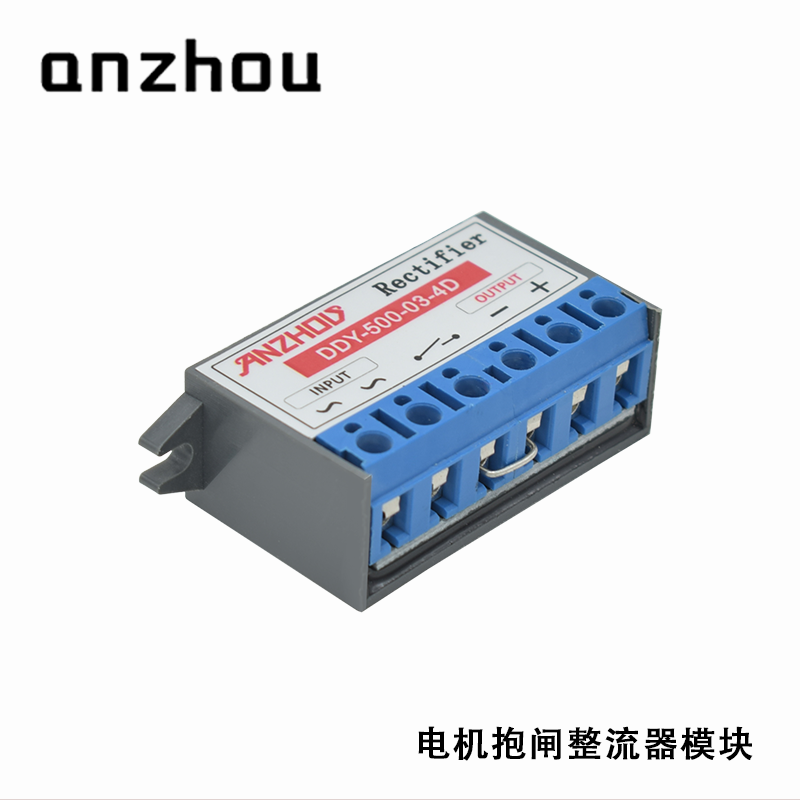

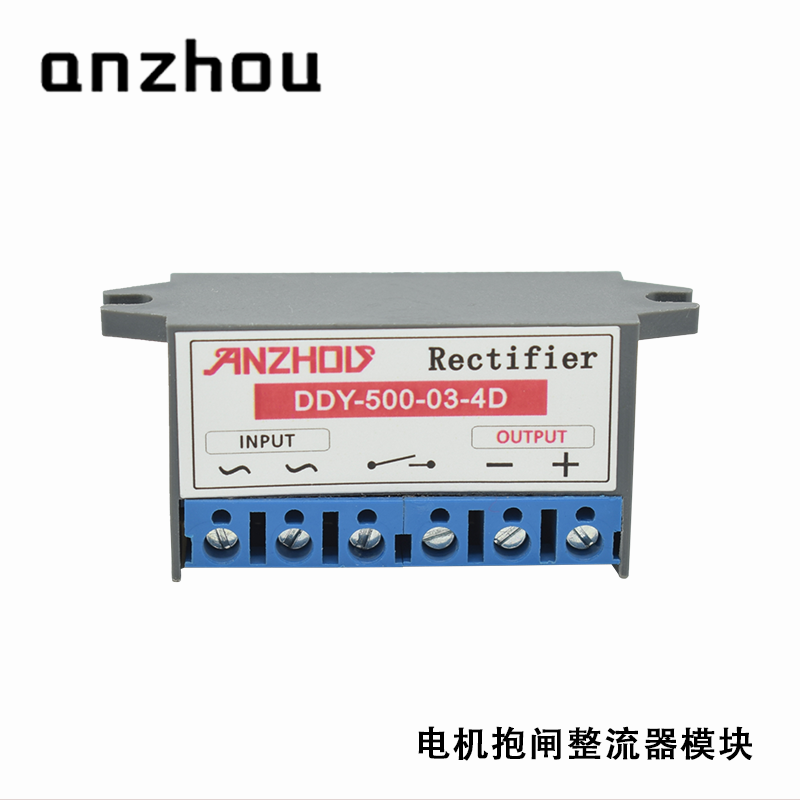

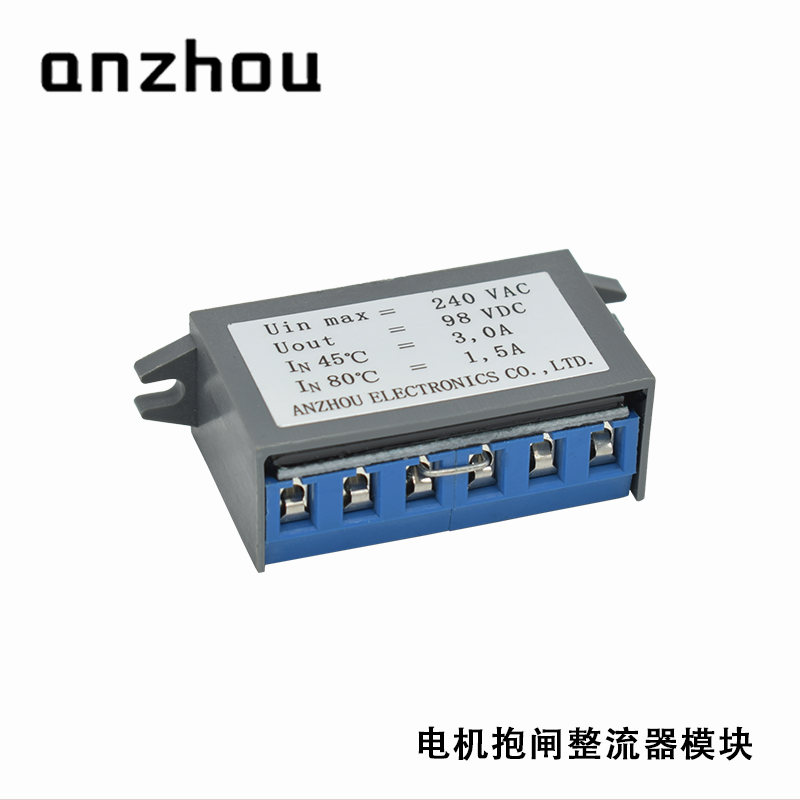

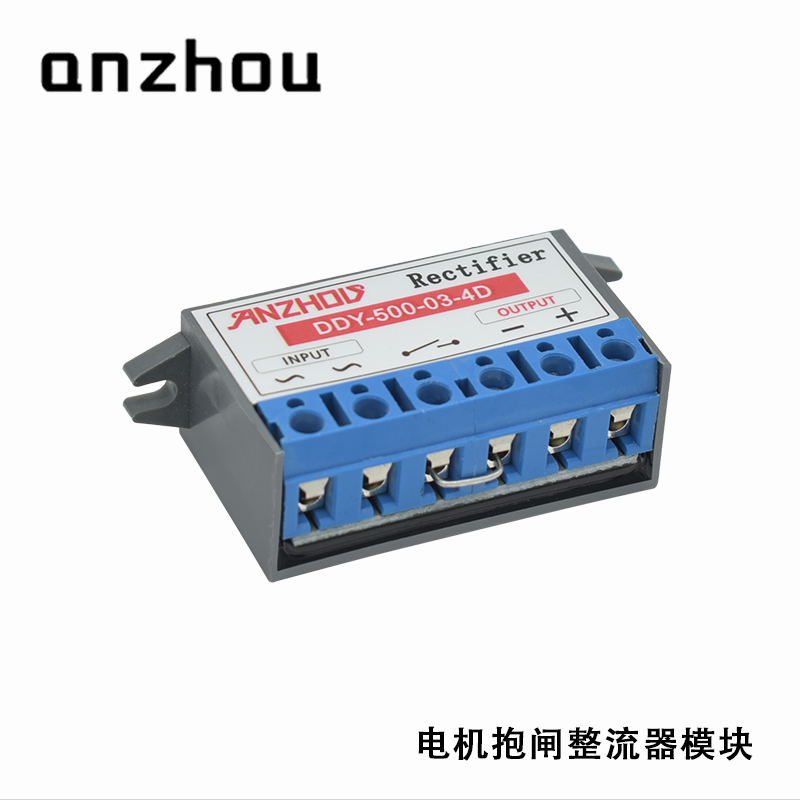

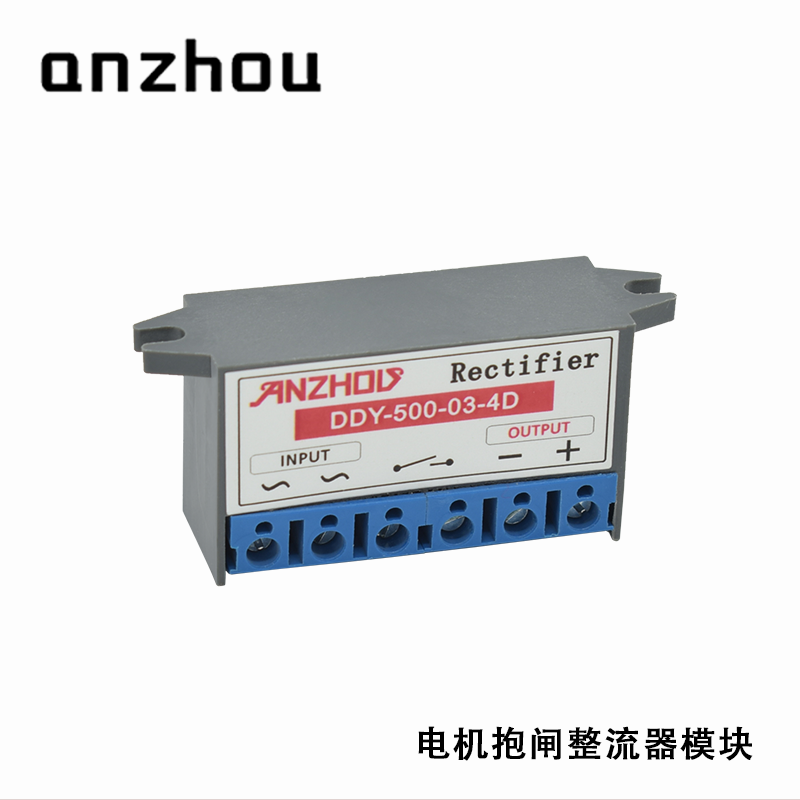

6-Pole Half Wave Rectifier DDY500-03-4D Bridge Rectifier,Köprü doğrultucu,Brückengleichrichter
(0)
0 Sold
$8.00

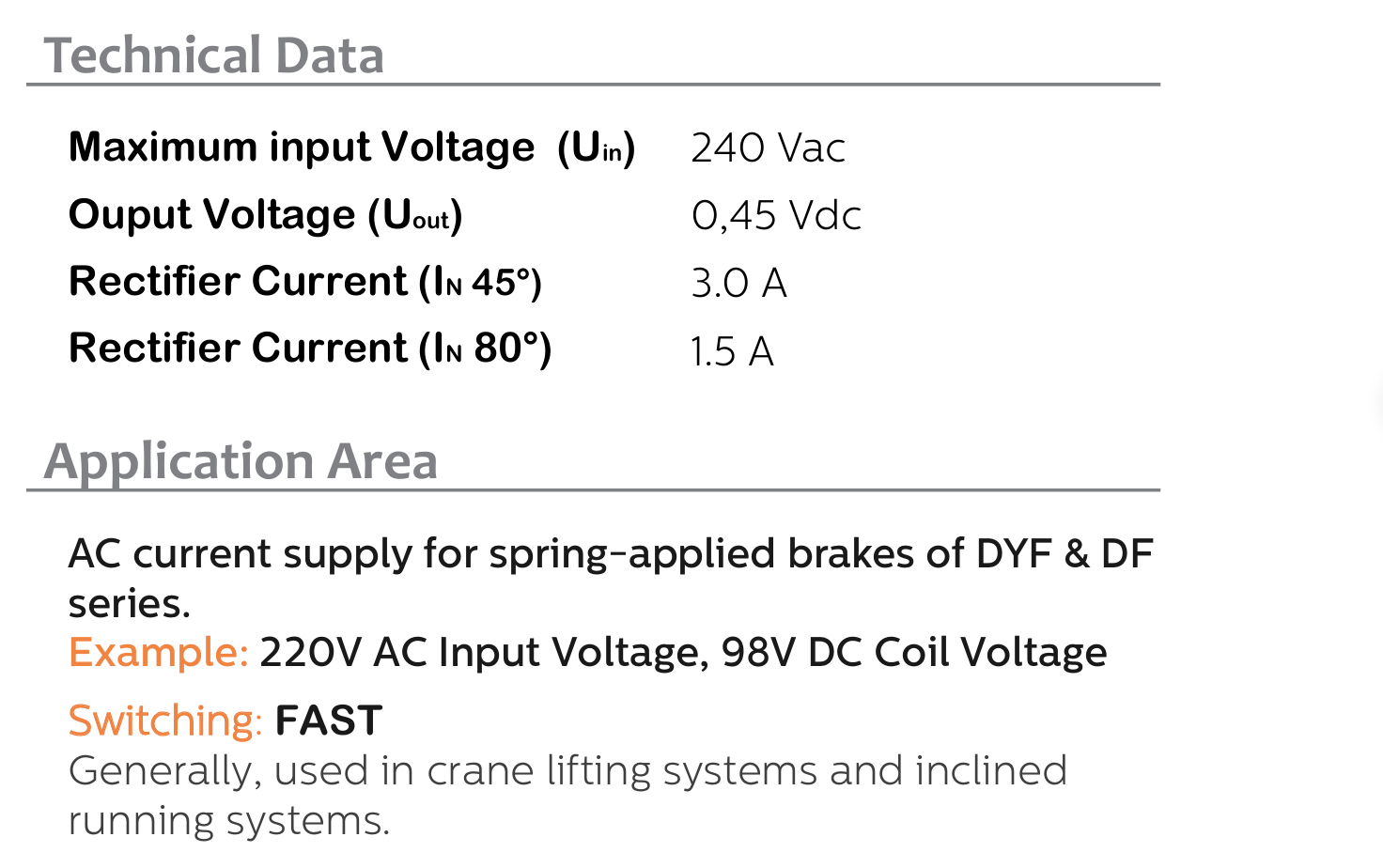

Technical Data
Maximum input Voltage (Uin) : 240 Vac

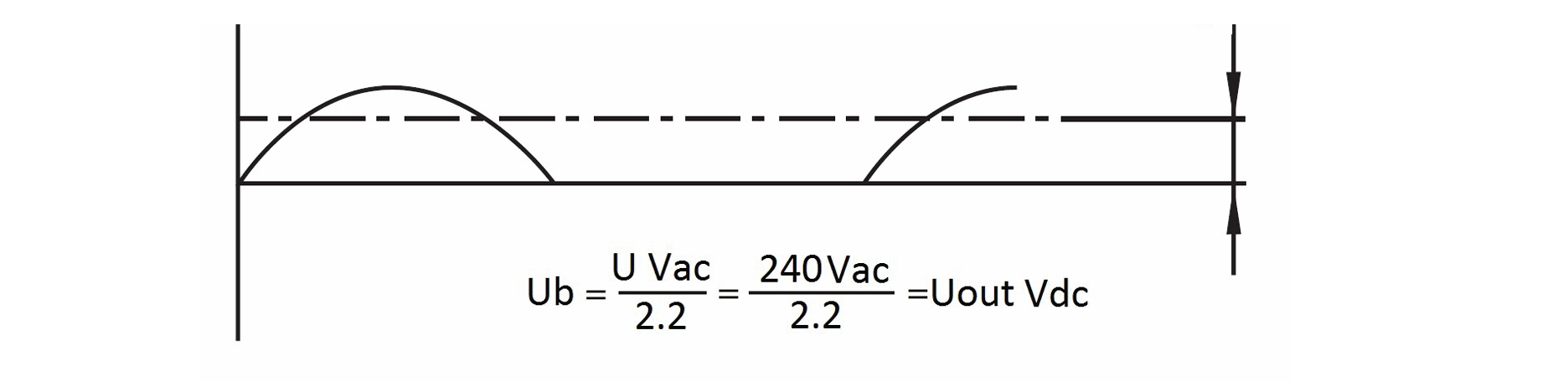

Output Voltage (Uout): 0,45Vdc
Rectifier Current (IN 45°) 3.0A
Rectifier Current (IN 80°) 1.5 A
AC current supply for spring-applied brakes of DYF & DF series.
Example: 220V AC Input Voltage, 98V DC Coil Voltage
Switching: FAST
Generally, used in crane lifting systems and inclinedrunning systems.
Maximum input Voltage (Uin) : 240 Vac
Output Voltage (Uout): 0,45Vdc
Rectifier Current (IN 45°) 3.0A
Rectifier Current (IN 80°) 1.5 A
AC current supply for spring-applied brakes of DYF & DF series.
Example: 220V AC Input Voltage, 98V DC Coil Voltage
Switching: FAST
Generally, used in crane lifting systems and inclinedrunning systems.
