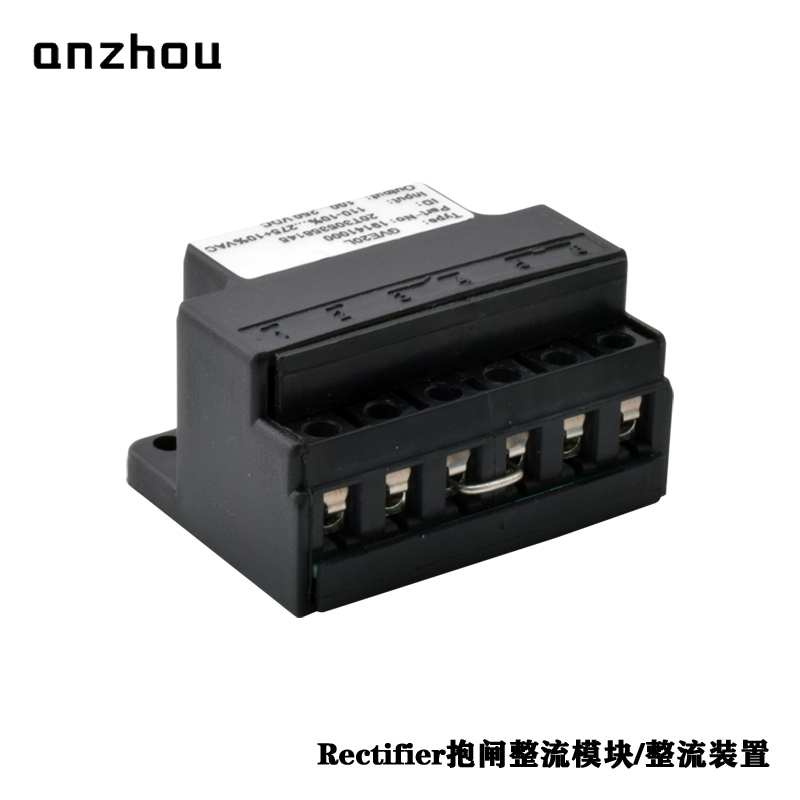

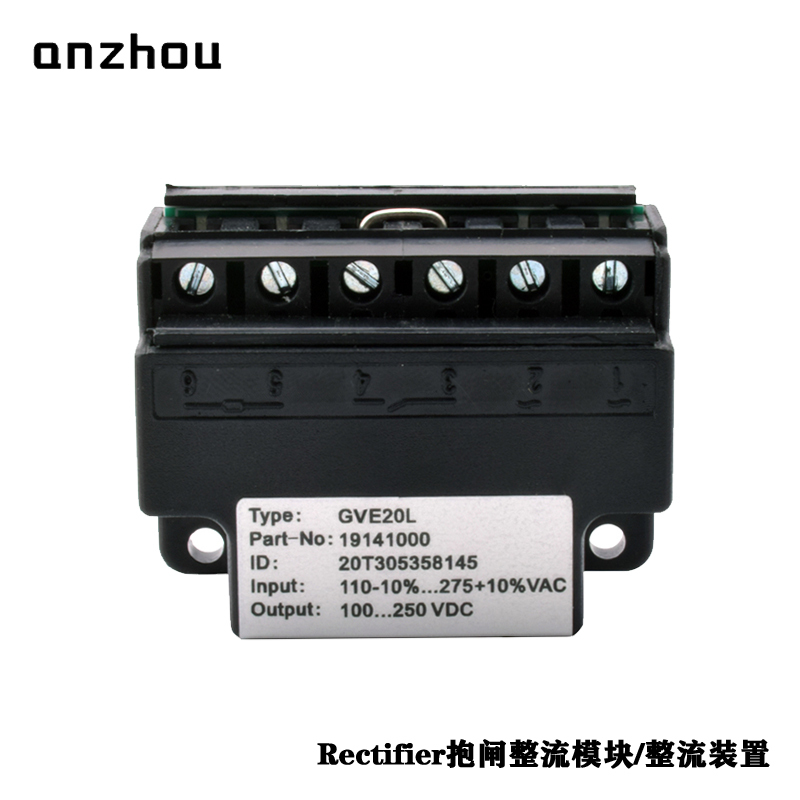

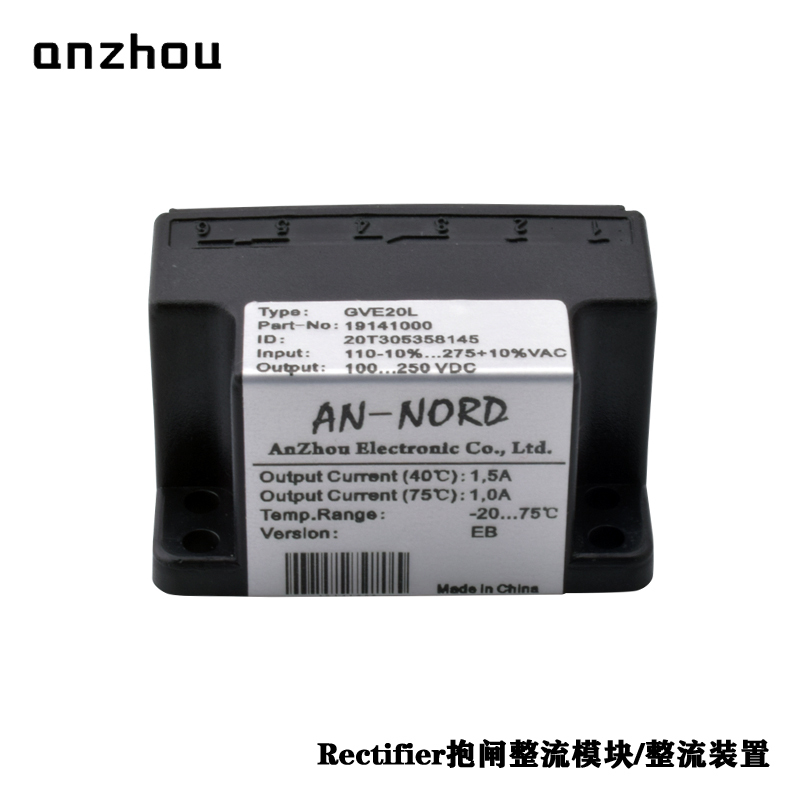

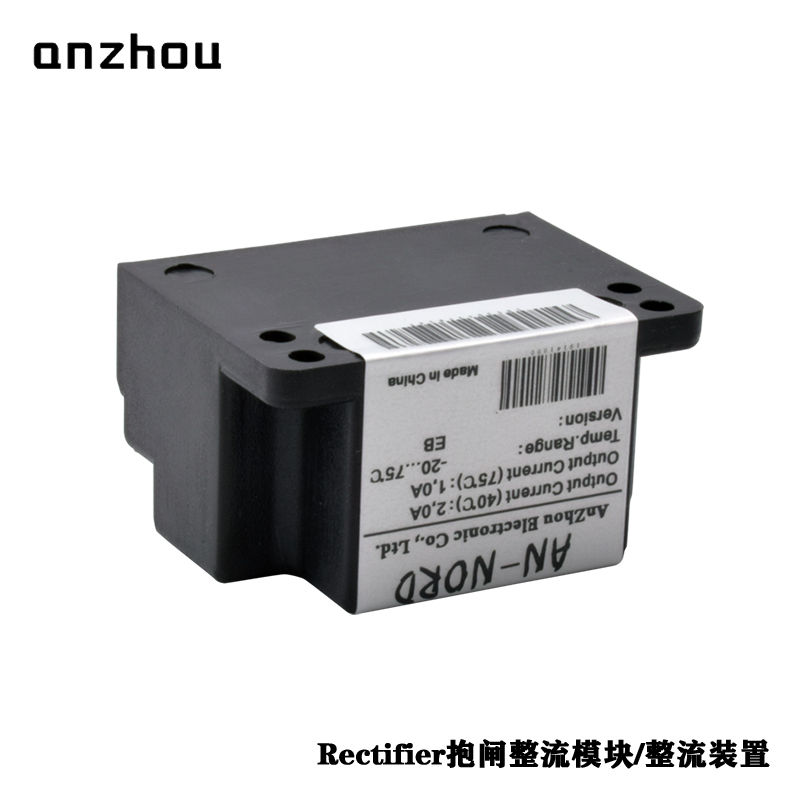

AN-NORD FULL-Wave Rectifier Model Type:GVE20L Part-no:19141000 Motor Brake Rectifier Power Module Input:110V-275VAC Output:100-250VDC Gleichrichter

Name: AN-NORD FULL-Wave Rectifier Model Type:GVE20L Part-no:19141000 Motor Brake Rectifier Power Module Input:110V-275VAC Output:100-250VDC Gleich
Brand: anzhou store
Price: 16 USD
Availability: InStock

0.0 (0)

1 Sold

$16.00

FULL-Wave Rectifier
Type : GVE20L
Input: 110V-275VAC ±10%
Output: DC100V/250v±10%

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

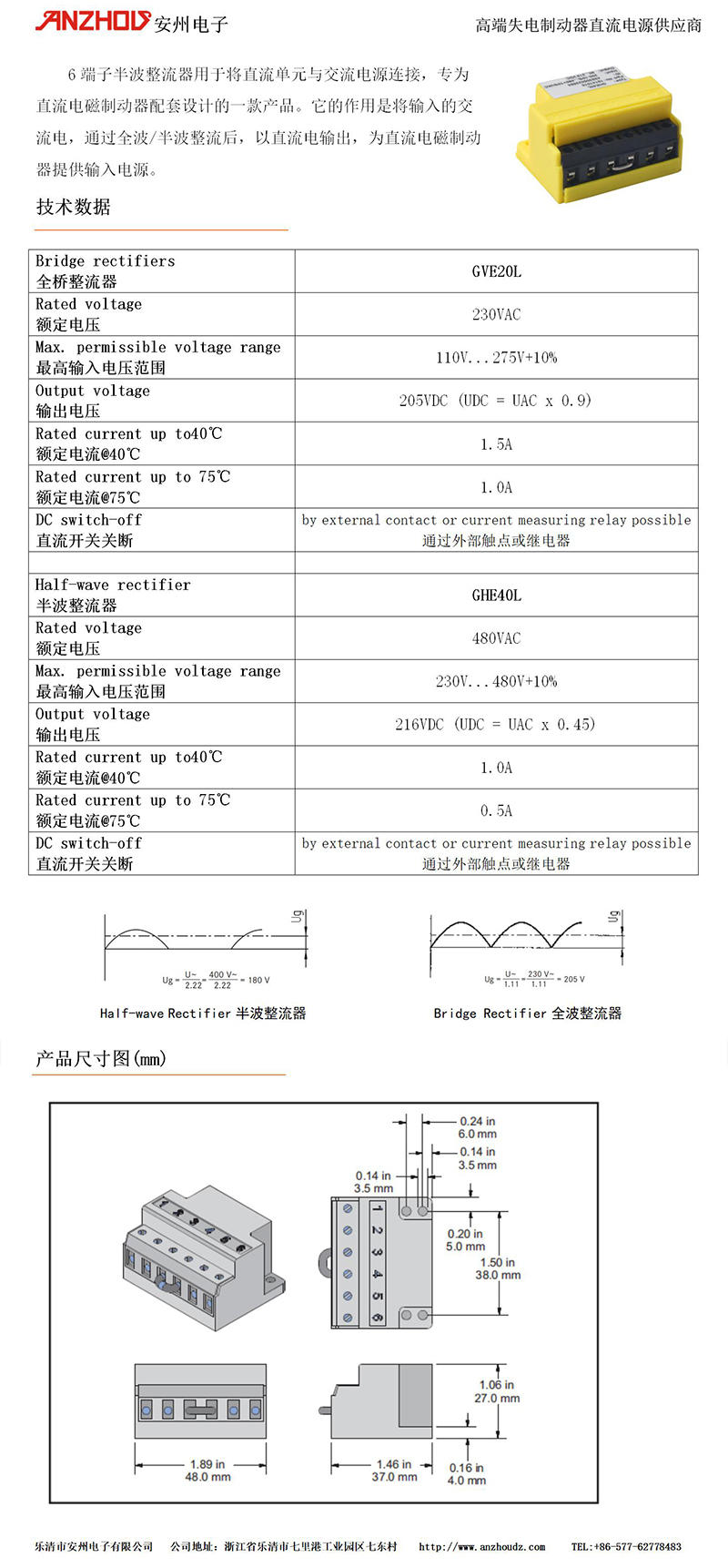

Technical Data
Rectifier Model GVE20L
Max.input Voltage (Uin) 575Vac.Max
Input Voltage (Uout) Uin X 0,9 Vdc
Rectifier Current (IN 45℃) 2.0A
Rectifier Current (IN 80℃) 1.0A
Example: 380V AC Input Voltage, 170V DC Coil Voltage
Example: 220V AC Input Voltage, 99V DC Coil Voltage

Dimension
