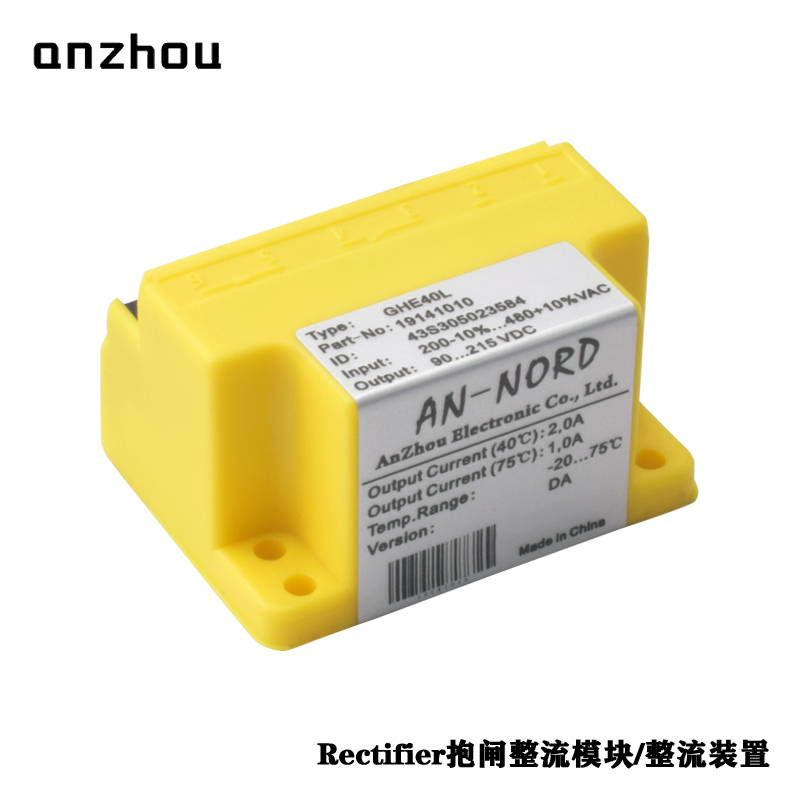

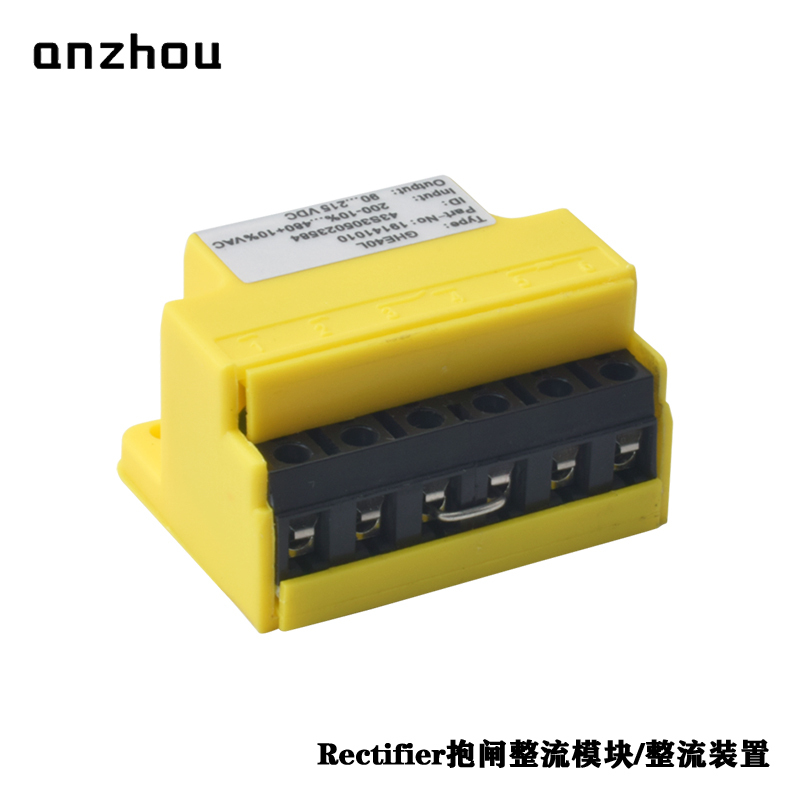

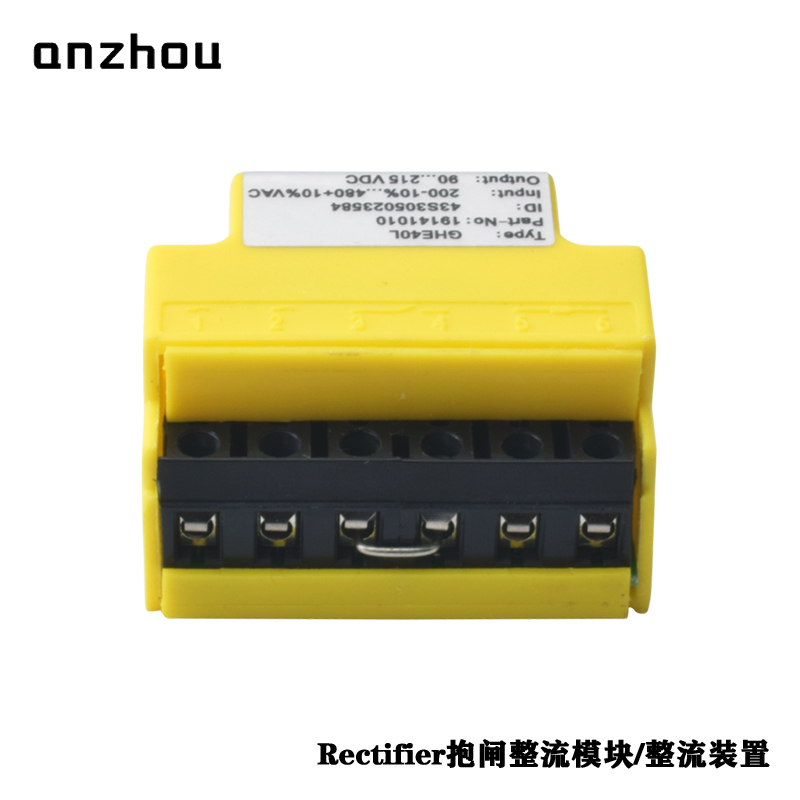

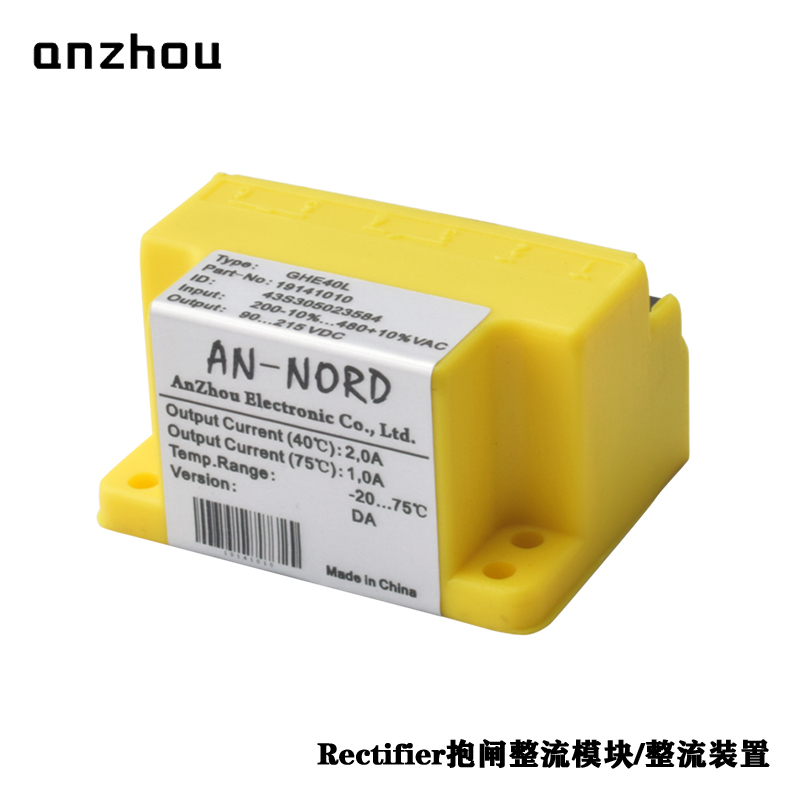

AN-NORD Half-Wave Rectifier Model Type:GHE40L Part-no:19141010 Motor Brake Rectifier Power Module Input:200V-480VAC Output:90-215VDC Gleichrichter

Name: AN-NORD Half-Wave Rectifier Model Type:GHE40L Part-no:19141010 Motor Brake Rectifier Power Module Input:200V-480VAC Output:90-215VDC Gleichr
Brand: anzhou store
Price: 16 USD
Availability: InStock

0.0 (0)

0 Sold

$16.00

Half-Wave Rectifier
Type : GHE40L
Input: 200V-480VAC ±10%
Output: DC90V/215v±10%

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Technical Data
Rectifier Model GHE40L
Max.input Voltage (Uin) 575Vac.Max
Input Voltage (Uout) Uin X 0,45 Vdc
Rectifier Current (IN 45℃) 2.0A
Rectifier Current (IN 80℃) 1.0A
Example: 380V AC Input Voltage, 170V DC Coil Voltage
Example: 220V AC Input Voltage, 99V DC Coil Voltage

Dimension
