Application
Rectifiers are used to connect DC consumers to alternating
voltage supplies,for example electromagnetic brakes and clutches,
electromagenets,electrovalves,contactors,swithch-on safe DC motors,etc.
Function
The AC input voltage(VAC)is rectified(VDC)in order to operate DC voltage units.Also,Voltage peaks,which occur when switching off inductive loads and which may cause damage to insulation and contacts,are limited and the contact load reduced
Electrical Connection(Terminals)
1+2 Input Voltage
3+4 Connection for an external switch for DC-side switching
5+6 Output Voltage
Technical Data
|
|

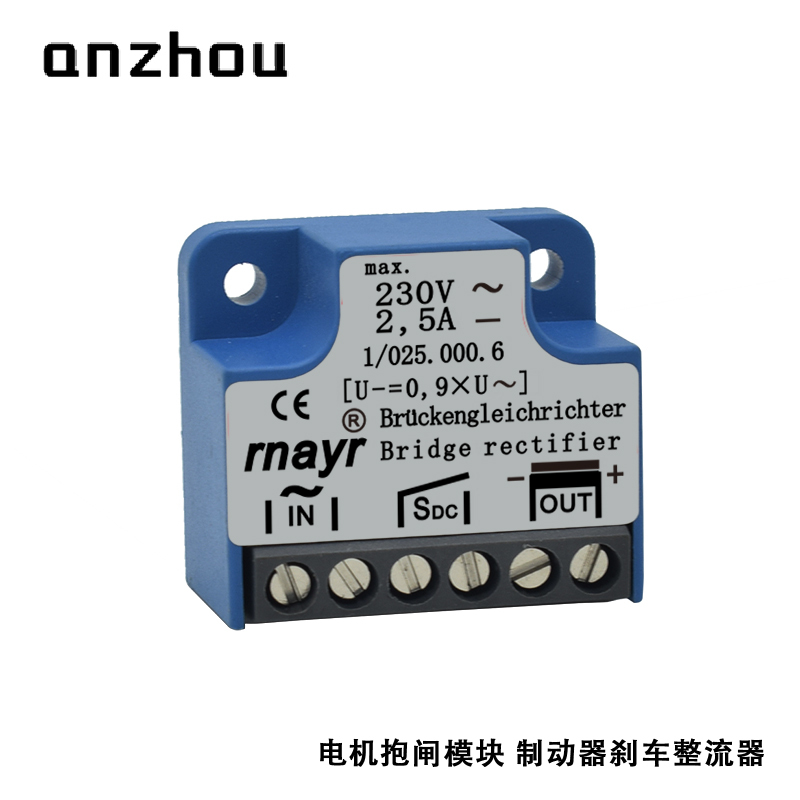

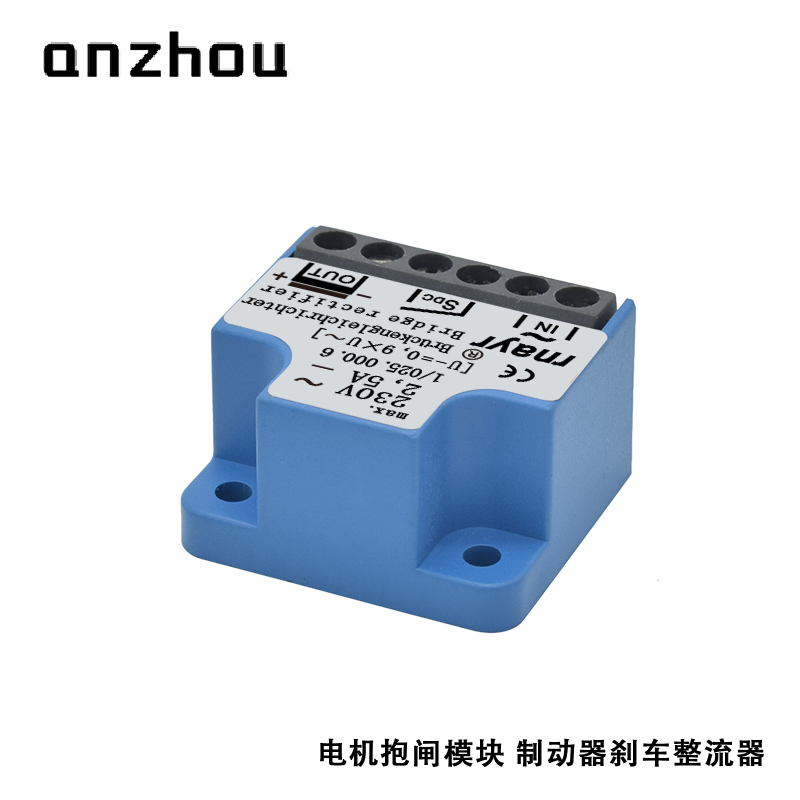

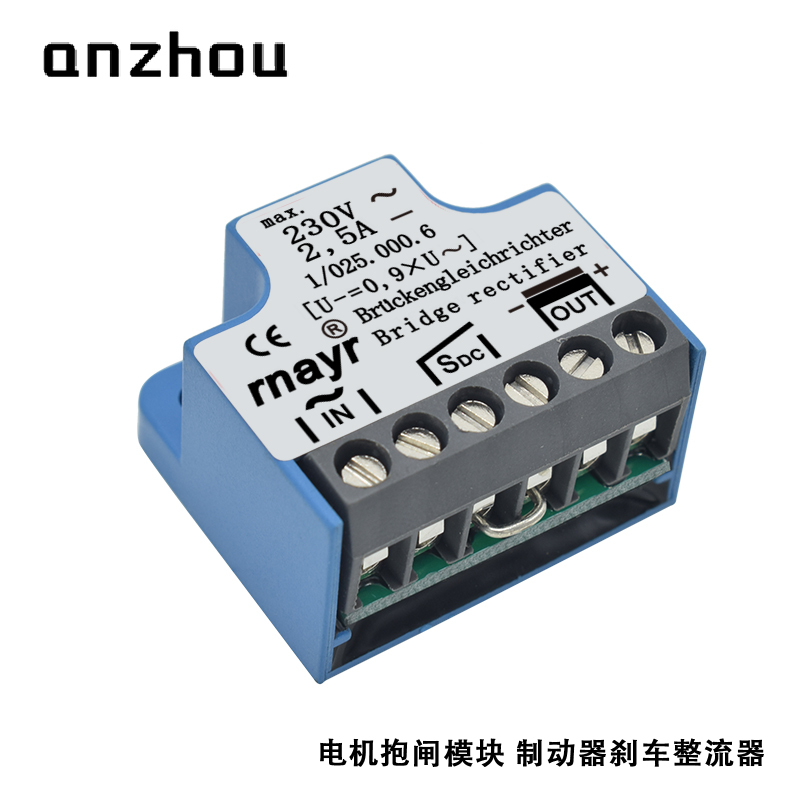

Bridge rectifier
|
Half-wave rectifier
|
|
Calculation output voltage
|
UBridge= 0,9×UAC
|
UHalf-wave= 0,45×UAC
|
|
Type
|
1/025.000.6
|
1/024.000.6
|
|
max.input voltage
|
230 VAC
|
400
|
|
max.out voltage
|
207 VDC
|
180
|
|
Output current
|
at≤50℃
|
2,5A
|
3,0
|
|
at max.≤85℃
|
1,7A
|
1,8
|
|
Ambient temperature
|
-25 up to +85℃
|
|
Storage temperature
|
-25 up to +85℃
|
Dimensions(mm)
|
Size
|
A
|
B
|
C
|
ΦD
|
E
|
|
1
|
34
|
30
|
25
|
3.5
|
4.5
|
