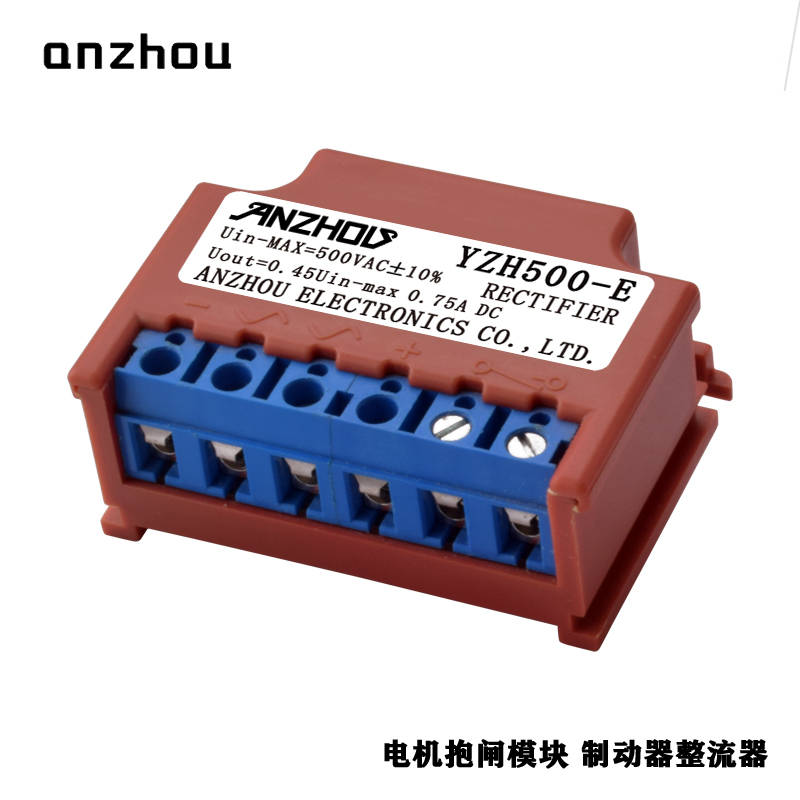

ANZHOU Einweggleichrichter YZH500-E Half-wave Rectifier Motor Brake Rectifier Power Module SeriesBallast Bridge Rectifier Input:220V/380VAC Output:99V/170VDC

Name: ANZHOU Einweggleichrichter YZH500-E Half-wave Rectifier Motor Brake Rectifier Power Module SeriesBallast Bridge Rectifier Input:220V/380VAC
Brand: anzhou store
Price: 7 USD
Availability: InStock

0.0 (0)

0 Sold

$7.00

ANZHOU Einweggleichrichter
YZH500-E
Half-wave Rectifier
Motor Brake Rectifier Power Module
SeriesBallast Bridge Rectifier

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Technical Data
Rectifier Model YZH500-E
Max.input Voltage (Uin) 550Vac.Max
Input Voltage (Uout) Uin X 0,45 Vdc
Rectifier Current (IN 45℃) 2.0A
Rectifier Current (IN 80℃) 1.0A
Example: 440V AC Input Voltage, 198V DC Coil Voltage
Example: 240V AC Input Voltage, 108V DC Coil Voltage

Dimension
