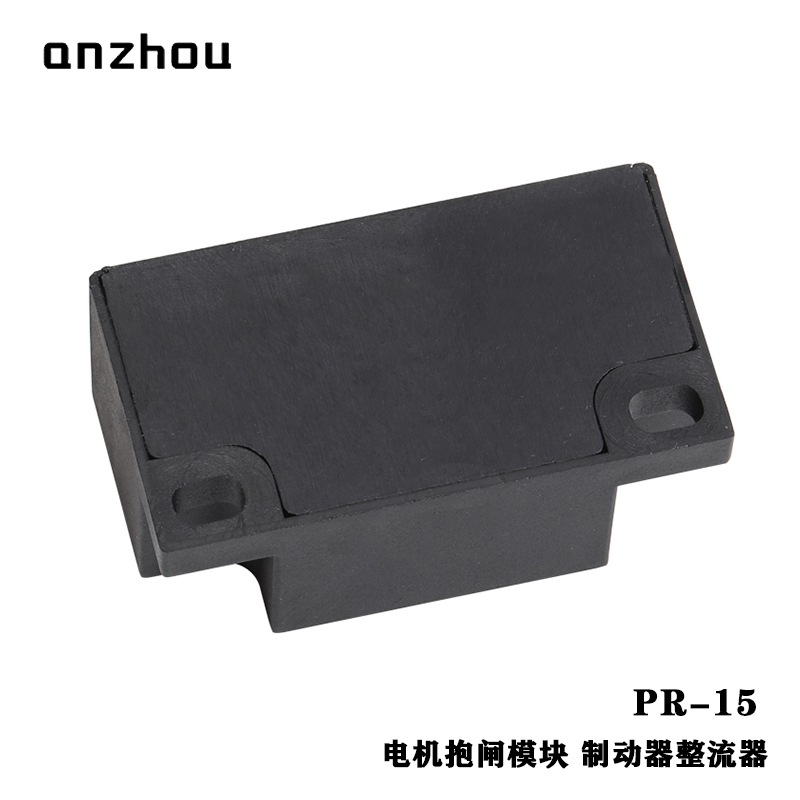

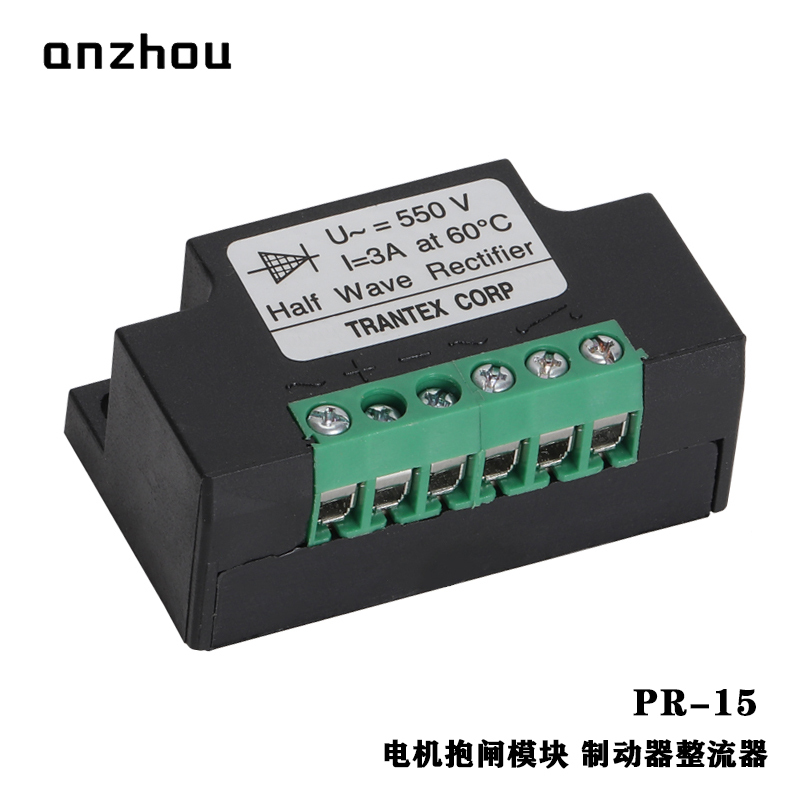

ANZHOU PR-15 Half-Wave Rectifier TRANTEX CORP Motor Brake Rectifier Power Module Power Supply

Name: ANZHOU PR-15 Half-Wave Rectifier TRANTEX CORP Motor Brake Rectifier Power Module Power Supply
Brand: anzhou store
Price: 30 USD
Availability: InStock

0.0 (0)

0 Sold

$30.00

Half-Wave Rectifier TRANTEX CORP
Type : PR-15 550VAC 3A
Input: 240V-440 ac
Output: 96-198v dc

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

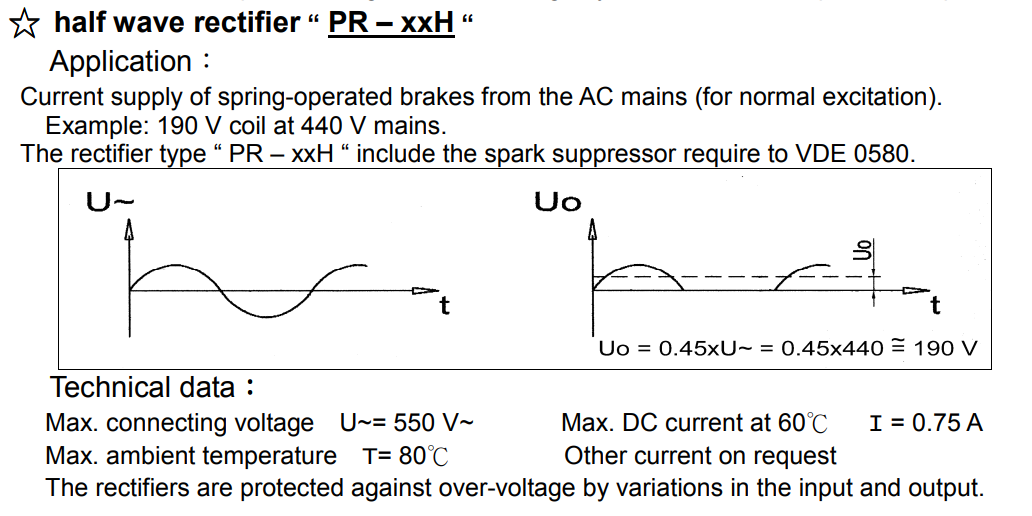

Technical Data
Rectifier Model PR-15
Max.input Voltage (Uin) 550Vac.Max
Input Voltage (Uout) Uin X 0,45 Vdc
Rectifier Current (IN 45℃) 3.0A
Rectifier Current (IN 80℃) 1.5A

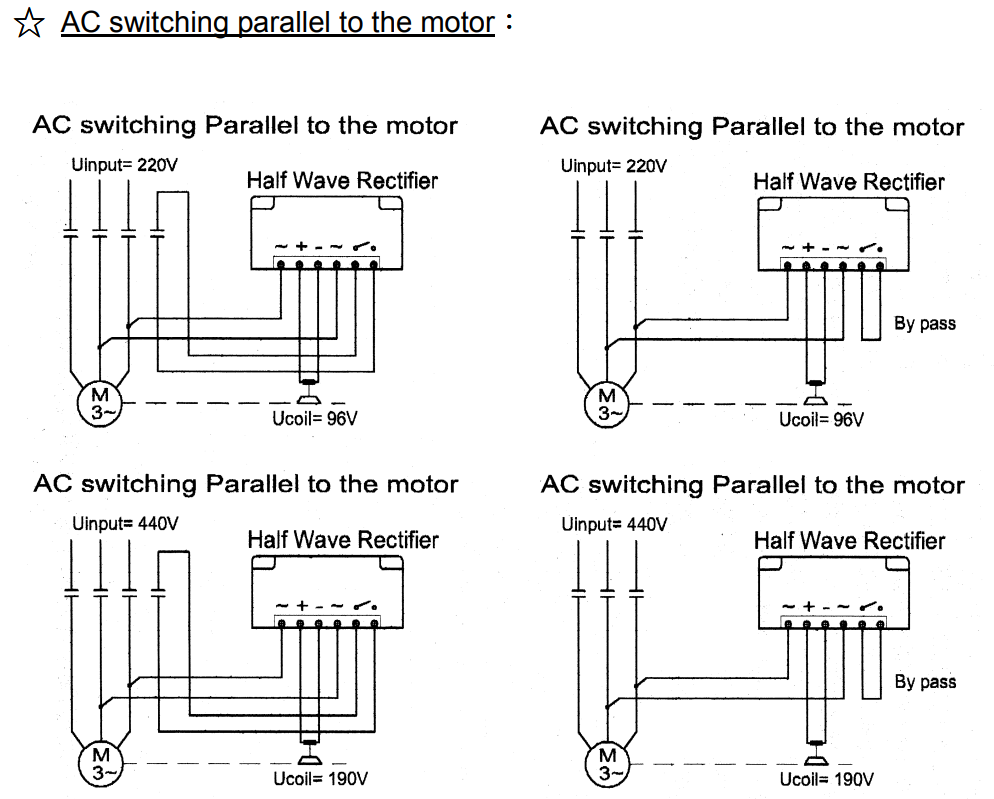

Example: 220V AC Input Voltage, 96V DC Coil Voltage
Example: 440V AC Input Voltage, 190V DC Coil Voltage

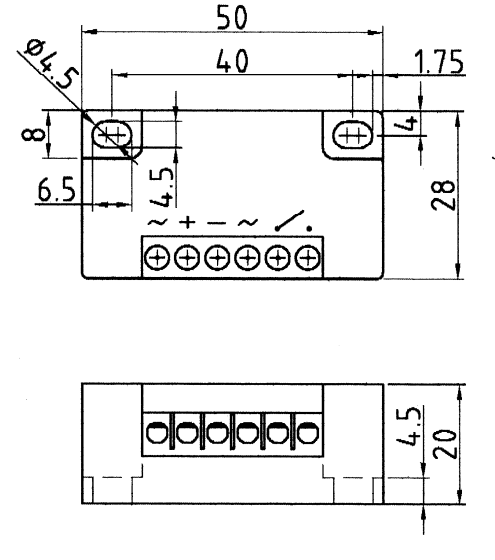

Dimension
