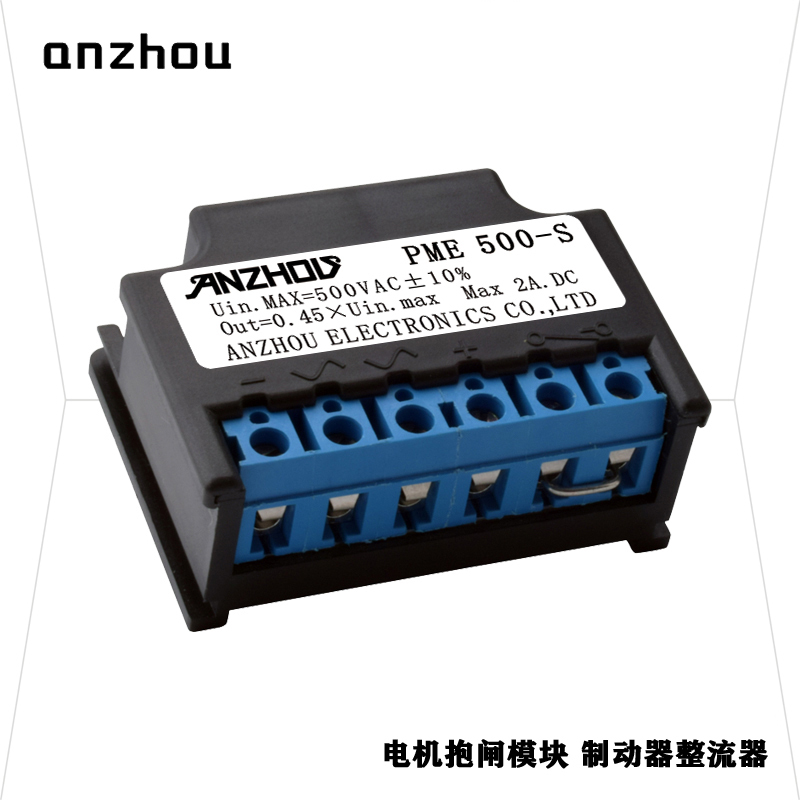

ANZHOU Half-Wave Rectifier PME500-S SeriesBallast Input:220V-380VAC Output:99V-170VDC Gleichrichter Motor Brake Rectifier Power Module

Name: ANZHOU Half-Wave Rectifier PME500-S SeriesBallast Input:220V-380VAC Output:99V-170VDC Gleichrichter Motor Brake Rectifier Power Module
Brand: anzhou store
Price: 7 USD
Availability: InStock

0.0 (0)

0 Sold

$7.00

Half-Wave Rectifier
Type : PME500-S
Input: AC220V/380V
Output: DC90V/170V

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Technical Data
Rectifier Model PME500-S
Max.input Voltage (Uin) 575Vac.Max
Input Voltage (Uout) Uin X 0,45 Vdc
Rectifier Current (IN 45℃) 2.0A
Rectifier Current (IN 80℃) 1.0A
Example: 380V AC Input Voltage, 170V DC Coil Voltage
Example: 220V AC Input Voltage, 99V DC Coil Voltage

Dimension
