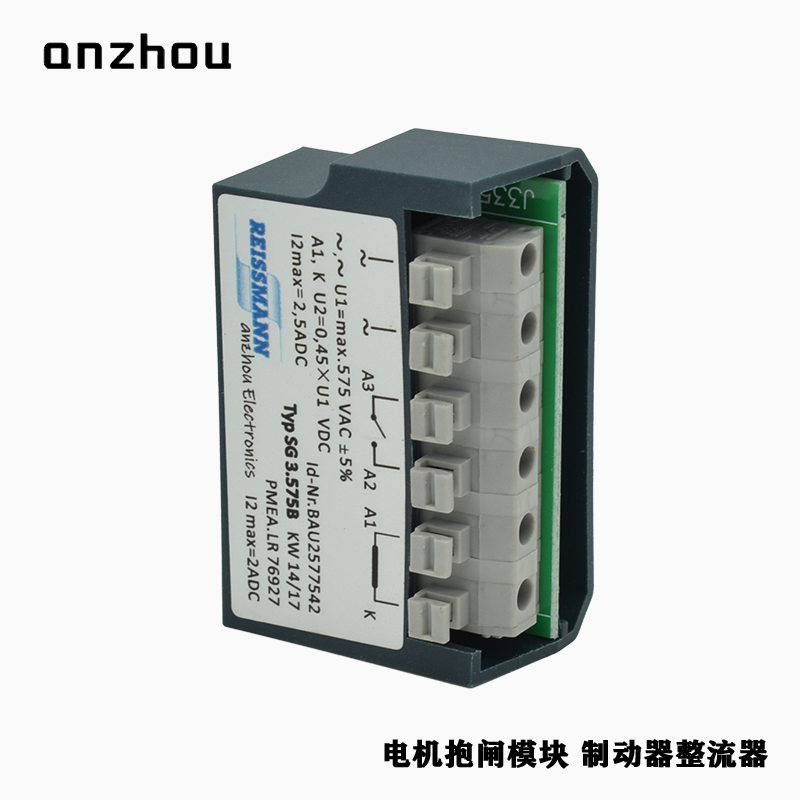

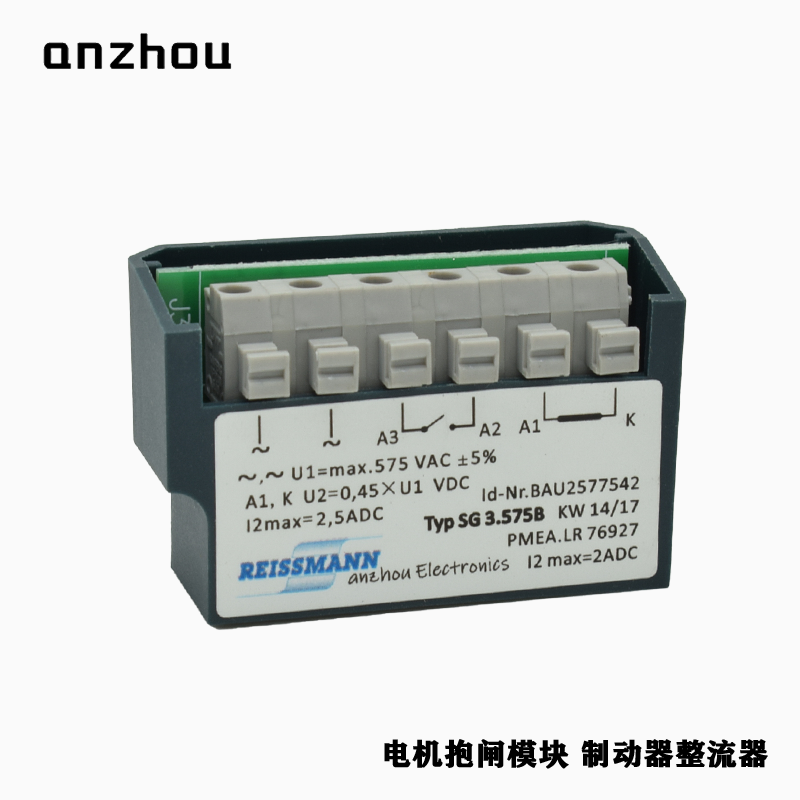

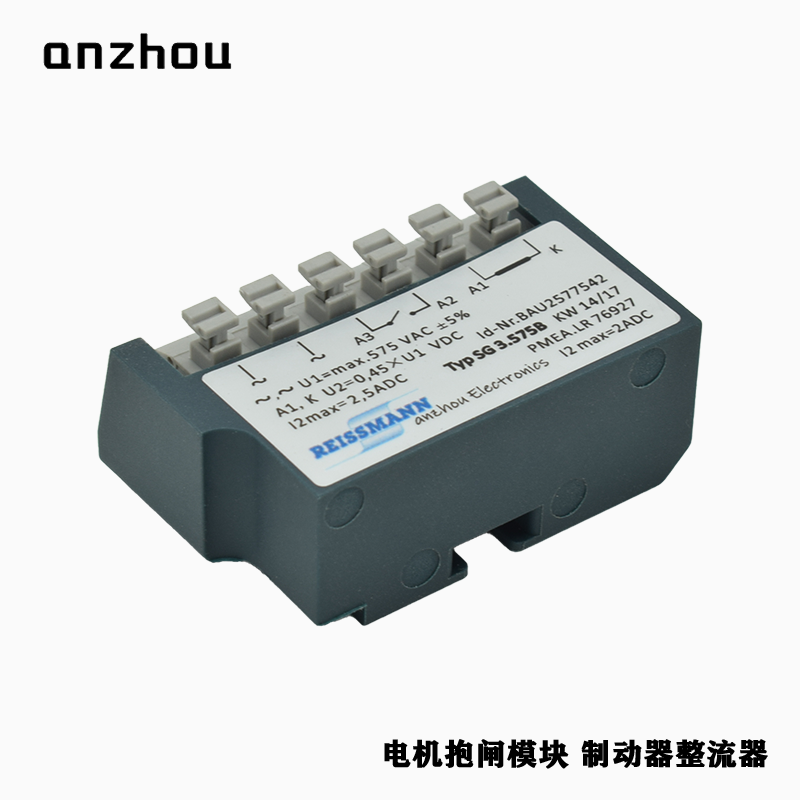

Half-wave Rectifier SG3.575B Brakes

Operating principle

Half-wave rectifier

Supply voltage U1

Max 575 V AC +5 %, 50/60 Hz

Output voltage

0.45 * U1 V DC

Maximum output current

2 A DC

Ambient temperature

-40 °C to 40 °C

Possible conductor

cross-sections

max. 1.5 mm2 without wire end ferrule

max. 1.0 mm2 with wire end ferrule
