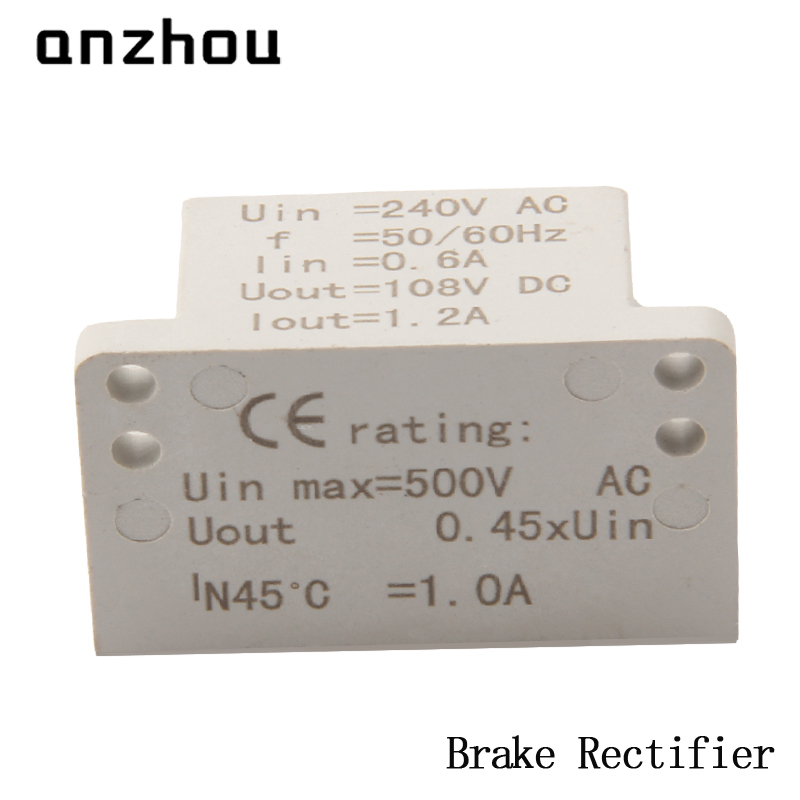

KEB BRAKE 108VDC Half wave rectifier 04.91.010-CE07 Einweggleichrichter Rectifiers for Electromagnetic Brakes

Name: KEB BRAKE 108VDC Half wave rectifier 04.91.010-CE07 Einweggleichrichter Rectifiers for Electromagnetic Brakes
Brand: anzhou store
Price: 8 USD
Availability: InStock

0.0 (0)

0 Sold

$8.00

Rectifiers for Electromagnetic Brakes
Half wave rectifier/Einweggleichrichter
Type : 04.91.010-CE07
Input: 200/240 ac *0.45
Output: 90-108v dc

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Technical Data
Rectifier Model 04.91.010-CE07
Max.input Voltage (Uin) 240Vac.Max
Input Voltage (Uout) Uin X 0,45 Vdc
Rectifier Current (IN 45℃) 1.0A
Rectifier Current (IN 80℃) 0.5A
Example: 240V AC Input Voltage, 108V DC Coil Voltage

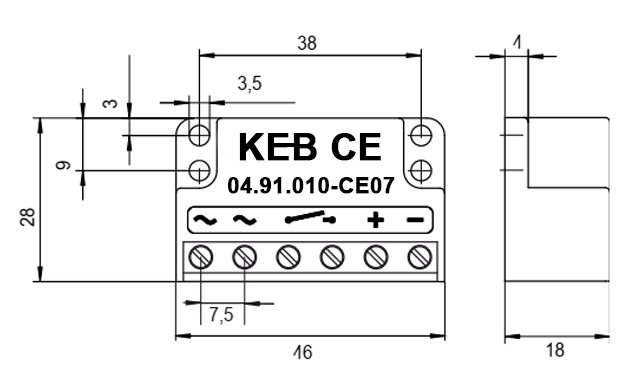

Dimension
