Home > Power Quality > RC Snubber Networks > RC Sunbber FOR Thyristor and Diode Module Rectifier

1/1

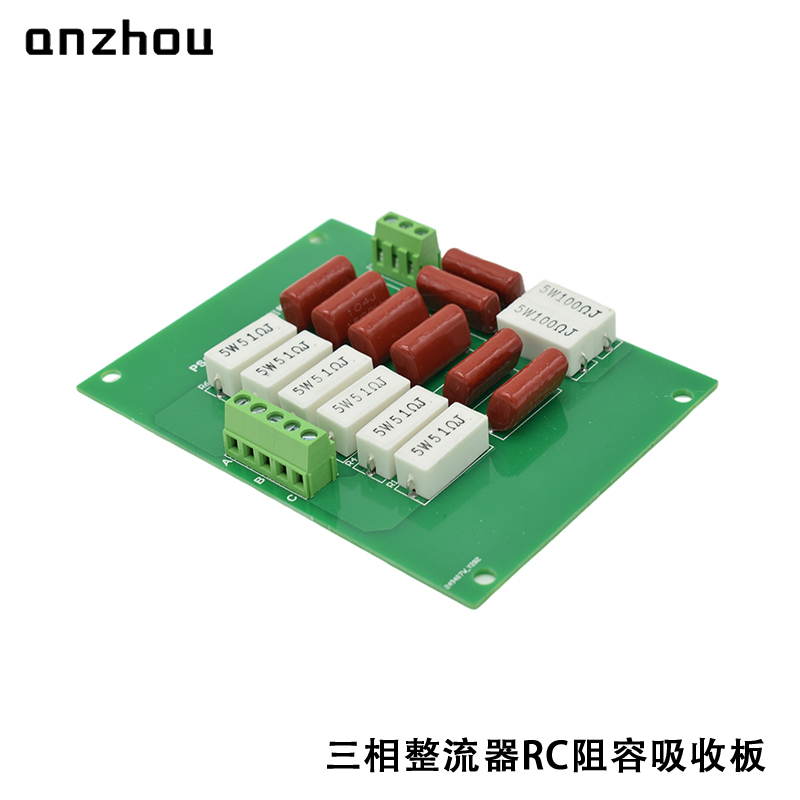

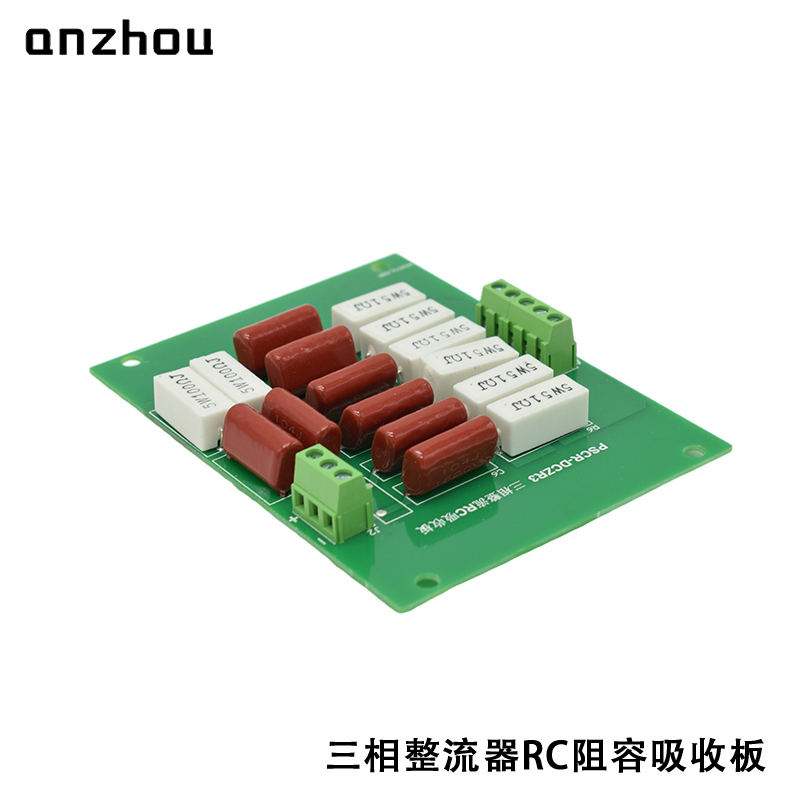

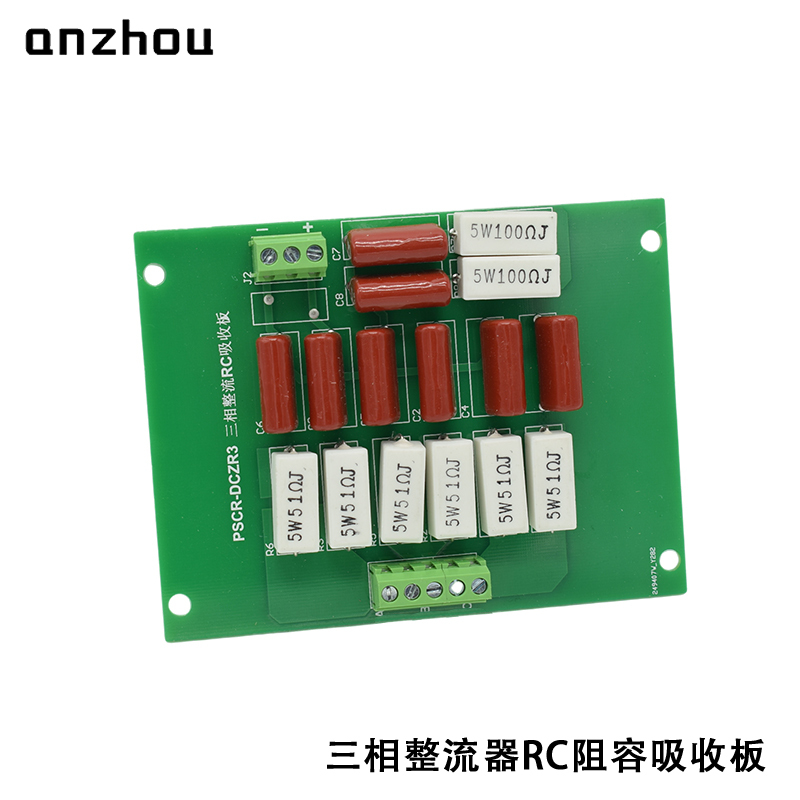

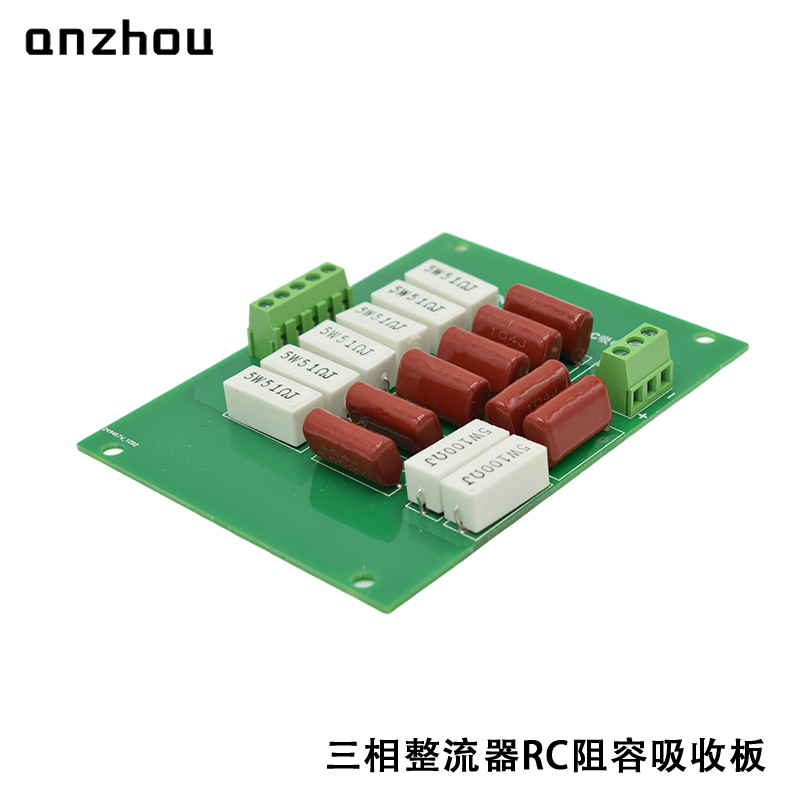

RC Sunbber FOR Thyristor and Diode Module Rectifier

Name: RC Sunbber FOR Thyristor and Diode Module Rectifier
Brand: anzhou store
Price: 10 USD
Availability: InStock

0.0 (0)

0 Sold

$10.00

Voltage surge protection

The use of RC networks turns the inductors in the circuit to series

resonant circuits, converting the steeply increasing voltage peaks into

attenuated oscillations of low amplitude.

Uncontrolled rectifier circuits

In uncontrolled bridge circuits, it is normally sufficient to include a

snubber on the DC side only. It is often not needed to include any

protection circuit as long as the maximum breaking voltage of the diodes is significantly higher than

the operation voltage.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Description:
Libratherm offers ready to use RC snubber circuits, which are essential to put across the thyristor
device to protect it against the voltage transients, which is generated during on/off operations of
these devices. In the event, such protection snubber are not used across the thyristors, it may lead to
false triggering and cause unwanted conduction and short circuiting or permanent damage of the
module.

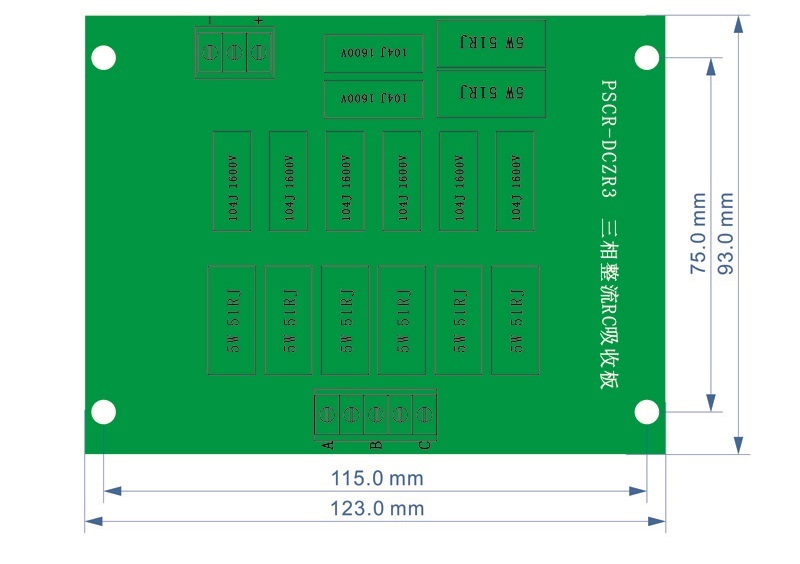

We are offering two sizes of RC snubber PCBs duly fitted with standard value of Resistor, Capacitor
and Metal OxideVaristor(MOV). The PCBs are designed to be directly fitted on the module as shown
in the above picture and hence no external wiring is required for connection. We have considered
Semikron make as the standard, but the PCB sizes applies to all other equivalent make of thyristor
modules. This PCB can be mounted above the power cables or Bus bars.

Voltage surge protection

The use of RC networks turns the inductors in the circuit to series

resonant circuits, converting the steeply increasing voltage peaks into

attenuated oscillations of low amplitude.

Uncontrolled rectifier circuits

In uncontrolled bridge circuits, it is normally sufficient to include a

snubber on the DC side only. It is often not needed to include any

protection circuit as long as the maximum breaking voltage of the diodes is significantly higher than

the operation voltage.
